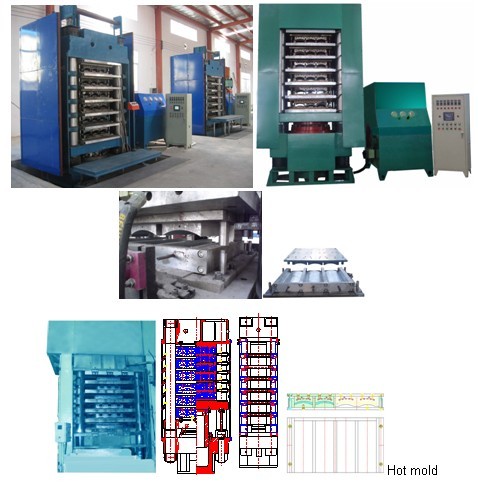

RD414 650T 6-layer Hot Press For Brake Linings
RD414 650T drum lining 6-layer hot forming press is a multiple layer hot press for specially producing drum brake lining developed by Xianglong through introducing South American technology, mainly used fir the hot press and forming for long drum type brake linings.
Its structure consists of main machine, hydraulic station, electric control system, hoisting table etc. It has independent pneumatic mechanism and electric control system, adopting touch screen and PLC system control, can realize full automatic working mode.
When working, start the press, operator places the performing material on the material flow shelf into the cavity, after loading all the material for the multiple layer mould inside the press, close the press mould, conduct the whole hot pressing process. Equipment is set with automatic hoisting stage and adopts PLC procedure control , realized full automatic production, operator only needs to place the preformed material into the mould cavity, electric control system can, according to preset PLC parameter by the technological personnel, control the pressing, remove the air, after the mould discharging time reaching the preset time, PLC control press shall remove the mould, hydraulic act at rear of the press shall push the lining out of the mould, so it’s easy operation, saving time and manpower, with high automation.
At the same time, equipment is also set with MPT, with excellent MM interface, technological personnel can preset MPT for the technological parameters of the product, and operator can’t change it. It shall avoid the randomness of the technological parameters in the product producing process, assuring the stability of the product quality .Due to heating and solidifying needing 15-20min, at this time, operator can also conduct pre-formation for the brake lining, hot pressing and pre-formation in one time, and every press can form 18 stripes in once time, every stripe is ≥5kg, So the yield of every shift shall exceed 5t, with high productivity.
