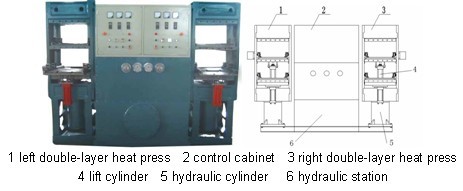

RD419 Double Layers Geared Machine
This machine is pressing equipment with good character for drum lining and disc pad. Its characteristics:
1, Adopts 2 pressing machine with double layers and is high efficiency.
2, Equipped with manual slip table between the heat-pressing plates, convenient to load, raise the product quality level.
3. Each layer equipped with mould unloading mechanism (oil cylinder), which make the mould structure simple, and reduce the mould cost (just 1/10 to 1/6 of the barrel mould), and is low labor intensity.
4 two pressing machine equipped with one hydraulic motive system (geared), based interlocked principle, timesharing control, can save power 60%, and less expensive.
5 5 scales: 2*2*50T，2*2*100T，2*2*200T，2*2*300T，2*2*400T.
